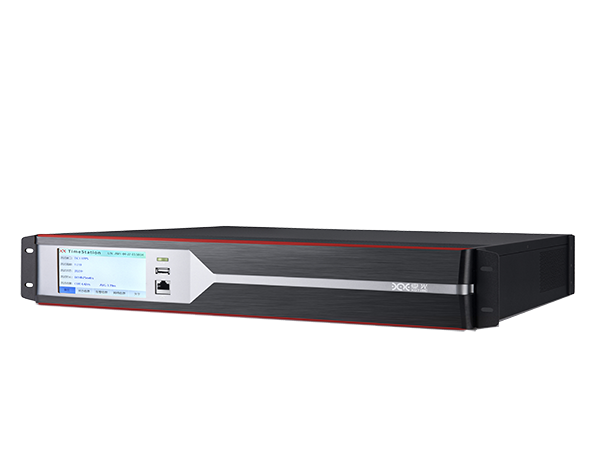

TimeStation-CV Time and Frequency Transfer System

Product Highlights

1、High integration with time transfer and time comparison

2、Time transfer accuracy better than 10ns, Time measurement accuracy better than 5ns

3、Trace to UTC time (NTSC)

4、Unique cloud computing interactive platform technology

5、Different modules can be put in together for test flexibly

  • Main Functions

    ? Built-in GNSS receiver and based on satellite common view technology, to implement high-precision time transfer and comparison in long distance

    ? Flexibly configure the observation cycle, compare the results in real time and generate report, also parallel execution for observation and data process

    ? Time output ports: 1PPS, 1PPS+TOD, IRIG-B(DC), NTP(SNTP), PTP

    ? Clock output ports: 10MHz, 2.048MHz, 2.048Mb/s, nKHz

    ? Time measurement ports: 1PPS, 1PPS+TOD

    ? Use web browser to configure settings, show results and manage data

    Redundant power supply, to ensure the stability and reliability of the power supply system for the platform







  • Technical Specifications

    Items
    Descriptions
    GNSS Receiver
    GPS、BDS
    Rubidium Oscillator
    Accuracy:1X10-12(100s)
    Time Transfer Accuracy
    <10ns(Refer to UTC)
    Time Measurement Accuracy
    <5ns(Refer to UTC
    Time Input Ports
    1PPS、1PPS+TOD
    Time Output Ports
    1PPS、1PPS+TOD、IRIG-B(DC)、NTP(SNTP)、PTP
    Clock (Frequency) Output Ports
    10MHz, 2.048MHz, 2.048Mb/s, nKHz
    Clock(Frequency) Reference Input Ports
    10MHz
    Data FormatNTSC, CGGTTS
    Dimension
    19”/2U Main Frame   483mm×400mm×89mm(L×W×H
    Working Temperature
    0℃~40℃
    Humidity
    5%-90%( 40℃)
    Storage Temperature
    -20℃~60℃
    Weight
    Around 8~12kg(Depending on the numbers of Modules)


















    For more details, please send email to sales@xgtime.com.cn or call +86-755-26711015
