Autonomous innovation design

Own full intellectual property, grasp core technology, and well recognized by users

Products

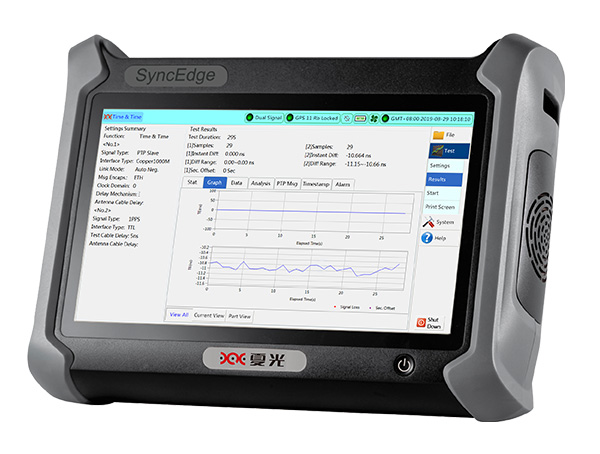

SyncEdge-C10 Time and Frequency Synchronization Analyzer

Product Highlights

? Portable and lightweight, suitable for field testing

? Optimize specially for telecom and broadcasting industry, meet the synchronous test requirement of telecom synchronous networks and broadcasting synchronous networks

? Support ITU-T 8275.X, ST 2059-2, IEEE 802.1AS profile


  • Main Functions

    ? Built-in GNSS receiver and high-quality Rubidium oscillator

    ? High stability industrial computer platform, all-in-one design

    ? 10.1 inches touch screen, with external mouse operation

    ? Excellent holdover capability, to meet requirement of time measurement without condition of antennas existing

    ? One instrument can complete all tests as per ITU-T G.812 recommendations

    ? Time ports: 1PPS, 1PPS+TOD, PTP, NTP(SNTP)

    ? Clock (Frequency) ports: 1MHz, 5MHz, 10MHz, 2.048MHz, 2.048Mb/s, SyncE

    ? Testing and evaluation can be performed in one unit, with test report generated by one button

    ? Support special tests of CCSA, CMCC, etc.

  • Technical Specifications

    Items

    Descriptions

    GNSS Receiver

    GPS,BDS,GLONASS,Galileo

    Time Source

    Built-in Rubidium Oscillator or External Reference

    Time Ports

    1PPS,1PPS+TOD,PTP,NTP(SNTP)

    Frequency Ports

    1MHz,5MHz,10MHz,2.048MHz,2.048Mb/s,SyncE

    Battery

    Lithium-ion rechargeable battery

    External Power Supply

    AC Adapter with input AC110~250V and output DC19.0V/6.32A

    Size

    295mm′220mm′85mm(L×W×H)

    Operating Temperature

    -10℃~40℃

    Storage Temperature

    -30℃~70℃

    Humidity

    5%~95% Non-condensing


    For more details, please send email to sales@xgtime.com.cn or call +86-755-26711015
